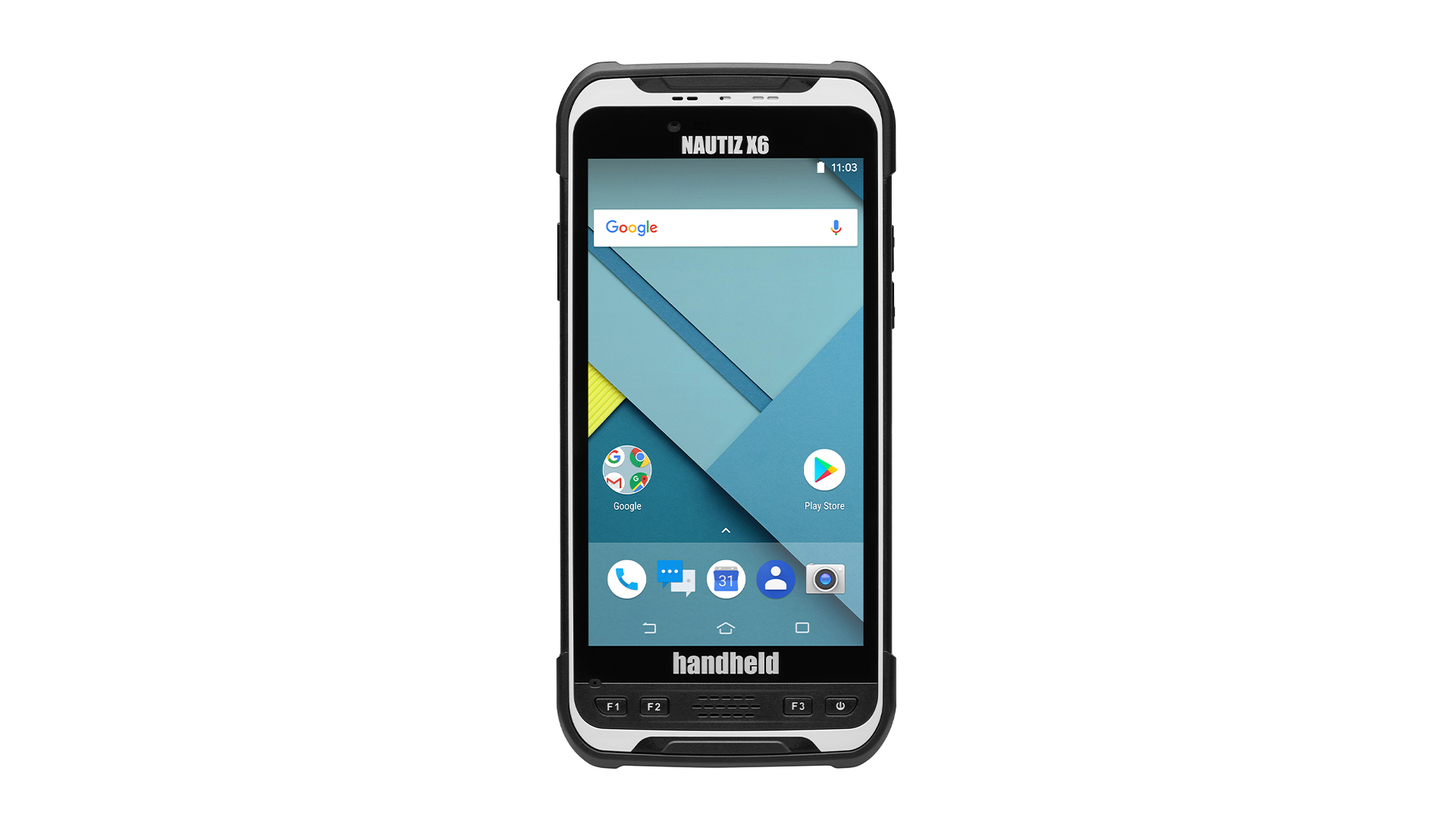

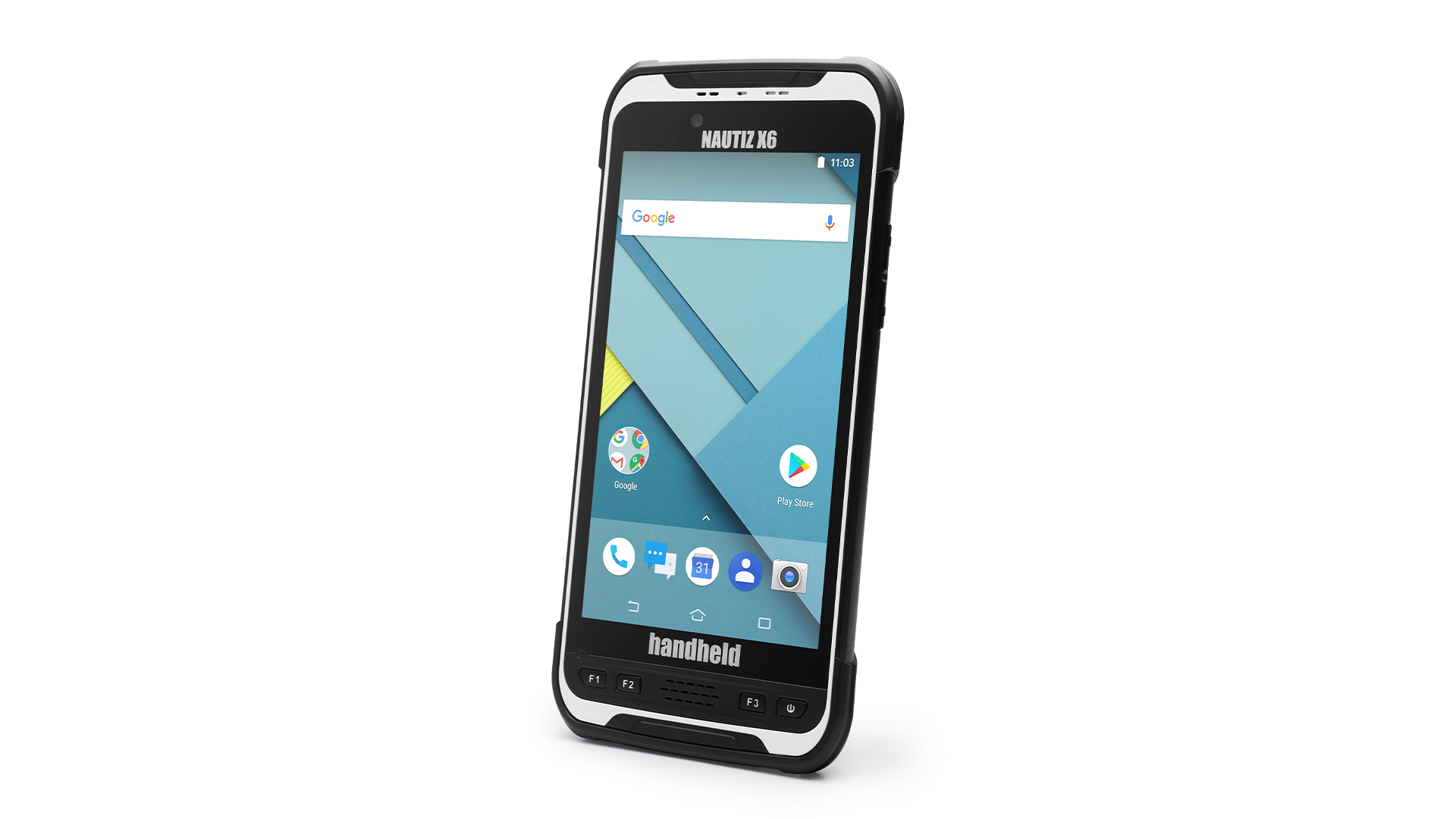

NAUTIZ X6

Technical Specifications

Dimensions

192 mm x 91 mm x 14.5 mm (7.5” x 3.5” x 0.5”)

Weight

380 g (13.4 oz)

Processor

Qualcomm® Snapdragon 626 MSM8953 Pro, 8 cores 2.2 GHz

Graphics

Adreno 506

RAM and Storage

4 GB / 32 GB

Operating System

Android 8.1 GMS

Display

6” capacitive multi-touch (10 points)
1080×1920 pixels
Sunlight readable
Glove/rain mode
Corning® Gorilla® Glass

Buttons

Front
F1, F2, F3, power

Side
FN, volume up/down

Battery

3.8V 8000 mAh (30.4 Wh), field replaceable

Ports

Type-C Qualcomm quick charge 3.0 OTG
GNSS antenna connector
Back connector for expandability
1x micro SDXC (128 GB)
2x nano SIM

Communication

Cellular (WWAN)
2G (850,900,1800,1900)
3G (1,2,5,8)
4G/LTE (1,2,3,4,5,7,8,17,20,28,38,39,40,41)
Carrier certification
Canada (Bell, Rogers, Telus)
Wireless LAN
2.4 GHz + 5 GHz
802.11a/b/g/n/ac
PAN
BT V4.1
NFC
13.56 MHz
ISO 14443A/B, ISO 15693
Audio
Headphone support via Type-C
Front-facing speaker
Microphone

Positioning

Dedicated u-blox GNSS receiver
GPS/GLONASS/Galileo/BeiDou

Cameras

Rear
13 megapixel with auto-focus and flash
Front
5 megapixel

Sensors

Gyroscope
Compass
Accelerometer
Pressure
Proximity
Ambient light

Environment

Operating
-20°C to 55°C (-4°F to 131°F)
MIL-STD-810G, Method 501.5/502.5 Procedure II
Storage
-40°C to 70°C (-40°F to 158°F)
MIL-STD-810G, Method 501.5/502.5 Procedure I
Drop / Shock
26 drops from 1.2 m (4 ft)
MIL-STD-810G, Method 516.6 Procedures I & IV
Vibration
MIL-STD-810G, Method 514.6 Procedure I
Sand / Dust
IP67, IEC 60529
Water
IP67, IEC 60529
Humidity
0% ~ 95% (non-condensing)
MIL-STD-810G, Method 507.5 Procedure II
Altitude
4572 m (15 000 ft)
MIL-STD-810G, Method 500.5 Procedures I & II
EMC/EMI
MIL-STD-461F, CE101, CE102, CS101, CS114, CS115, CS116, RE101, RE102, RS101, RS103

Additional Security

Qualcomm® Processor Security
Qualcomm® Content Protection
Qualcomm® Device Lock Authentication
