Change u-blox GPS mode to Automotive on ALGIZ devices

There is a setting in the u-center program, that solves a problem where the GPS won’t update the location when you are moving. The following solution improves GPS navigation abilities when moving around.

  1. Open u-center.
  2. Connect to GPS module (default port is COM3, baudrate 9600).
    windows screenshot
  3. Go to View > Configuration View.
  4. Click NAV5 (Navigation 5) on the left side list.
  5. Set Dynamic Model to 4 – Automotive.
  6. Click the Send button in the lower-left corner.
    windows screenshot
  7. Switch to CFG (configuration) tab in left side list. Select Save current configuration. At Devices: select all 4 list entries. (To select all entries, tap and hold pen/mouse on first entry and move down to last entry and release pen/mouse). Click the Send button in the lower-left corner.
    windows screenshot

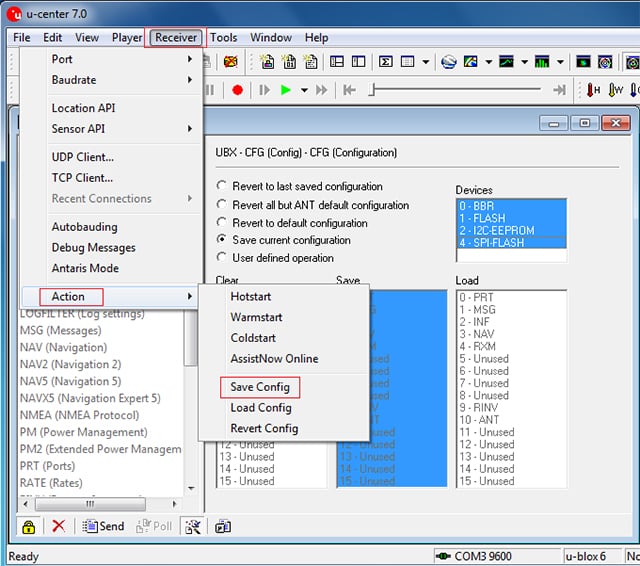

  8. Click Receiver > Action > Save Config.
    windows screenshot
  9. Done.
