Overview

The barcode scanner expansion for the Nautiz X6 provides the ability to scan barcodes with the very capable built-in 2D imager. Utilizing the back pogo pin interface to allow for plug-and-play functionality.

Works with NX6V2-RF1-A00 devices.

Download the MaxGo Scanner App here.

Features

  • Compatible with handstrap
  • Demo app and SDK available on our knowledge base

Compatibility

Need Help?
Give us a Call now! And we will make sure that you get the right accessories.

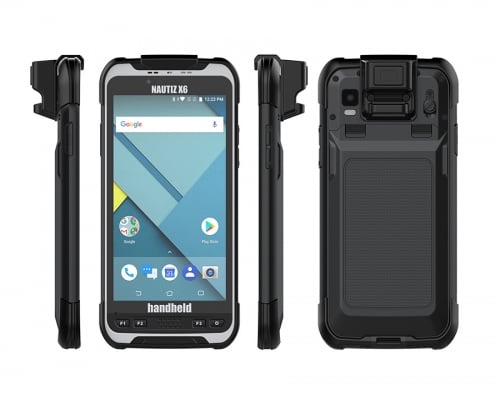

NAUTIZ X6 Barcode scanner expansion

P/N: NX6V2EXP-BC

Overview

The barcode scanner expansion for the Nautiz X6 provides the ability to scan barcodes with the very capable built-in 2D imager. Utilizing the back pogo pin interface to allow for plug-and-play functionality.

Works with NX6V2-RF1-A00 devices.

Download the MaxGo Scanner App here.

Features

  • Compatible with handstrap
  • Demo app and SDK available on our knowledge base

Compatibility

Need Help?
Give us a Call now! And we will make sure that you get the right accessories.

Technical Specifications

Performance

Sensor
CMOS sensor with 640 x 480 pixel resolution

Illumination
White LED

Aiming
Red LED dot aimer

Typical frame rate
30 frames per second

Motion tolerance
Up to 10 cm/s (4 in/s) for 13 milUPC at optimal focus

Field of view
Horizontal: 37.8°
Vertical: 28.8°

Scan angles
Tilt: 360°
Pitch: ±45°
Skew: ±45°

Symbol contrast
35% minimum print contrast ratio

Environmental

Operating temperature
-10°C to 40°C (14°F to 104°F)

Storage temperature
-40°C to 60°C (-40°F to 140°F)

Humidity
up to 95% relative humidity,
non-condensing, at 40°C (104°F)

Shock
2500 G for 0.4 ms at 23°C (73°F)

Vibration
3 axes, 1 hour per axis: 2,54 cm [1 in]
peak-to-peak displacement (5 Hz to
13 Hz), 10 G acceleration (13 Hz to
500 Hz), 1 G acceleration (500 Hz to
2,000 Hz)

Ambient light
0 lux to 100,000 lux (total darkness
to bright sunlight

MTBF
1,470,000 hrs

Symbologies

Linear
Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 DataBar, UPC-A, UPC-E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation

2D Stacked
Codablock A, Codablock F, PDF417, MicroPDF417

2D Matrix
Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin) Code

Postal
Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet

Standard range

100% UPC
Near distance: 55 mm (2.1″)
Far distance: 280 mm (11″)
Delta: 225 mm (9.9″)

5 MIL Code 39
Near distance: 61 mm (2.4″)
Far distance: 130 mm (5.1″)
Delta: 69 mm (2.7″)

20 MIL Code 3
Near distance: 60 mm (2.4″)
Far distance: 380 mm (15.0″)
Delta: 320 mm (12.6″)

6.7 MIL PDF417
Near distance: 60 mm (2.4″)
Far distance: 125 mm (4.9″)
Delta: 65 mm (2.5″)

10 MIL Data Matrix
Near distance: 60 mm (2.4″)
Far distance: 130 mm (5.1″)
Delta: 70 mm (2.7″)

20 MIL QR
Near distance: 50 mm (2.0″)
Far distance: 230 mm (9.0″)
Delta: 180 mm (7.0″)
