Overview

The pistol grip for the Nautiz X2 provides an ergonomic way to handle all your barcode scanning needs, and with the added ultra-high frequency RFID module it also gives you the ability to read tag data up to 8m!

With the built-in 4G/WiFi and Bluetooth of the Nautiz X2 it gives you a versatile and unique data collector.

See this knowledge base article on how to use the RFID reader.

Features

  • UHF with NA/SA antenna, 902-928MHz
  • Docking station included
  • Replaceable battery (5200 mAh)
  • Battery in pistol grip can charge via dock without NX2 attached

Compatibility

Need Help?
Give us a Call now! And we will make sure that you get the right accessories.

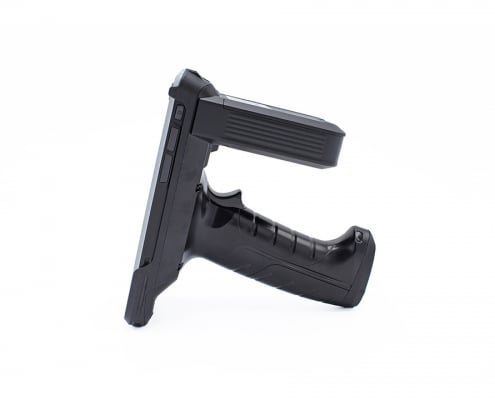

NAUTIZ X2 Pistol Grip UHF (NA)

P/N: NX2-NA-1043

Overview

The pistol grip for the Nautiz X2 provides an ergonomic way to handle all your barcode scanning needs, and with the added ultra-high frequency RFID module it also gives you the ability to read tag data up to 8m!

With the built-in 4G/WiFi and Bluetooth of the Nautiz X2 it gives you a versatile and unique data collector.

See this knowledge base article on how to use the RFID reader.

Features

  • UHF with NA/SA antenna, 902-928MHz
  • Docking station included
  • Replaceable battery (5200 mAh)
  • Battery in pistol grip can charge via dock without NX2 attached

Compatibility

Need Help?
Give us a Call now! And we will make sure that you get the right accessories.

Technical Specifications

1D Laser

Linear
UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 93, Code 11, Codabar, Interleaved 2 of 5, Dicrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, MSI, GS1 DataBar, Trioptc

2D Imager

Linear
UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Code 2 of 5,Matrix 2 of 5, MSI, Telepen, Trioptc, China Post

2D Stacked
PDF417, MicroPDF417, GS1 Composite

2D Matrix
Aztec Code, Data Matrix, QR Code, Micro QR Code,MaxiCode, Han Xin Code

Postal
Intelligent Mail Barcode, Postal-4i, Australian Post, Britsh Post, Canadian Post, Japanese Post, Netherlands (KIX) Post, Postnet, Planet Code

OCR Option
OCR-A, OCR-B, E13B (MICR)

UHF

Tag/Transponder Protocols
EPC Class 1 Gen 2 (ISO 18000-6C)

RF Interface
RF Output: Adjustable from 5dBm to 30dBm
Frequency: FCC (NA, SA) 902-928 MHz, ETSI (EU) 865-867 MHz

Hardware Structure
ASIC: Intel/Indy R2000
Tag cache: 299 tags

Environment
Operating: -20°C to 55°C
Storage: -40°C to 85°C

Performance
Reading rate: ≥ 250 tags/sec
Reading distance: ≥ 8m

Weight
With unit: 766g
Without unit: 530g
