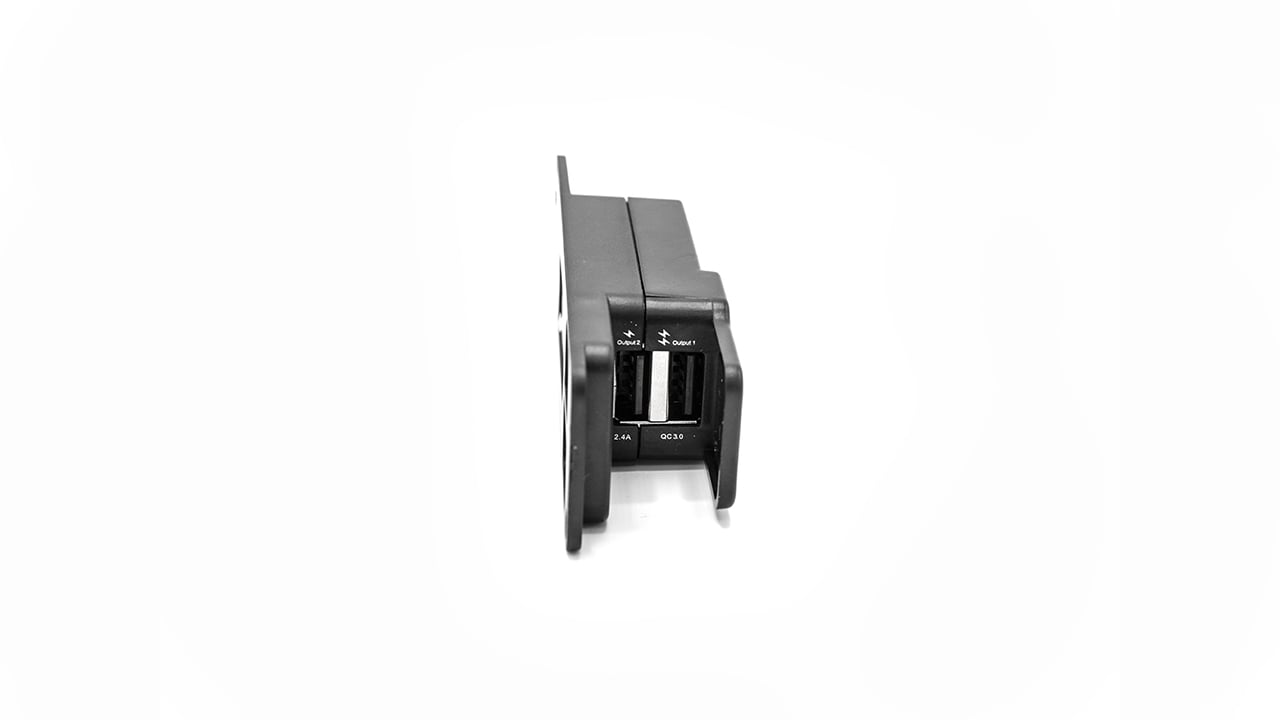

HW-installation kit

P/N: USB-HWK-4

Overview

Hardwire installation kit for many of our rugged computers. The kit includes a bare cable (+ / -) with a modular end connecting to our box. The box can handle 12-24V and has on the other end two USB-A outlets where you are able to connect many of our vehicle dock solutions.

Features

  • 12-24V
  • Modular cable
  • x1 USB-A socket supporting Qualcomm quick charge 3.0
  • x1 USB-A socket supporting 2.4A
  • CE/FCC certified

Need Help?
Give us a Call now! And we will make sure that you get the right accessories.

Technical Specifications

Output connector type

Dual USB Type-A Female

Output voltage

5V, 9V, 12V (Nominal)

Input voltage range

DC 12-24V DC
Input can handle 40V load dump transient events

Input current

3.0A DC Max

Input current with no device attached

0.005A

DC-DC conversion efficiency

Over 86% typical

Charging support

Apple 2.1A
Apple 10 W
Apple 5 W
Samsung 10 W
Qualcomm QC 2.0
Qualcomm QC 3.0
5V 3A, 9V 2A, 12V 1.5A

Rated power

USB port 1: 12 W max
USB port 2: 18 W max

Material

High-quality PC + ABS fireproof Material

Dimension

109.1 mm x 30.3 mm x 26.1 mm (4.3″ x 1.2″ x 1″)

Net weight

37.7 g (1.3 oz)
