Extended cap I/O and SDK manual for NAUTIZ X81

Here’s how the Nautiz X81 looks with the extended cap.

And here’s how it looks without the cap.

Interface description

  • Connector
    20 pin Dual row receptacle (2.0mm Pitch) Connector
  • Part Number
    60470-02041-001(ACES)
  • Pin Number 1
    pinout close up

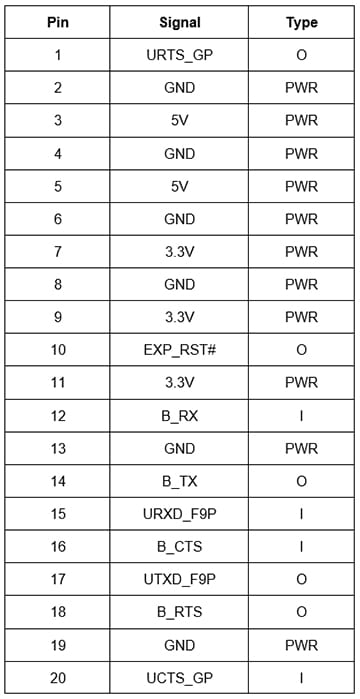

  • Pin Description

  • Recommended Mate Connector
    2.0 mm Pitch Male Header Connector

Electrical characteristics

  • UART Signals
    Related Signals: B_RX, B_TX, B_CTS, B_RTS
    URXD_F9P, UTXD_F9P, UCTS_GP, URTS_GP
    Signal levels are 3.3V levels
  • Reset Signal
    Related Signal: EXP_RST#
    This is an active low Open drain output signal which is pulled up to 3.3V by 100K ohm resistor. It can be controlled by software.
  • 3.3V
    Voltage: 3.3V +/-5%
    Max Current: 2.5A (Continuous)
  • 5V
    Voltage: 5.0V +/-5%
    Max Current: 1.0A (Continuous)
