ALGIZ 10X V1 COM port assignment

The COM-Ports in the Algiz 10X V1 are assigned as follows:

  • COM1: Serial port on the left side of the device

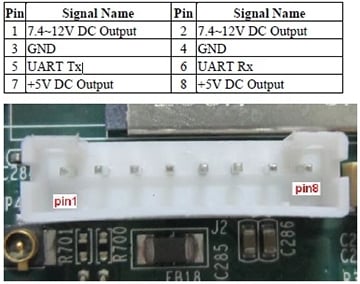

  • COM2: Internal UART interface
    port details
  • COM3: u-blox GPS at 9600 baud
  • COM4: Serial port on Vehicle cradle (Only available if a powered vehicle cradle is connected)
  • COM5 (Next to LAN connector): Serial port on Vehicle cradle (Only available if a powered vehicle cradle is connected)
