Overview

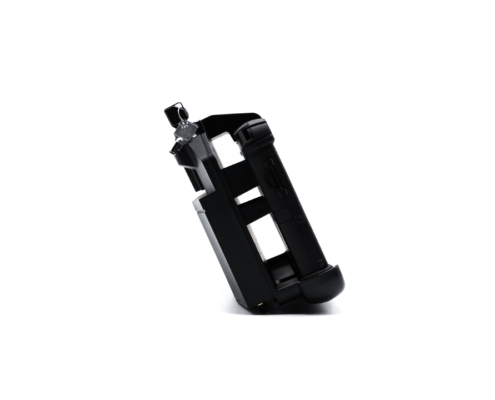

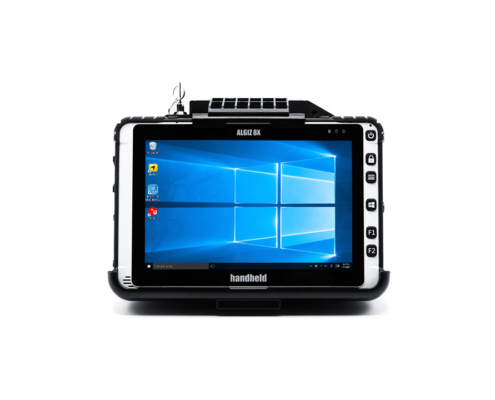

The Algiz 8X Lockable Vehicle Dock keeps the device steady in your vehicle and provides several connectivity options.

Features

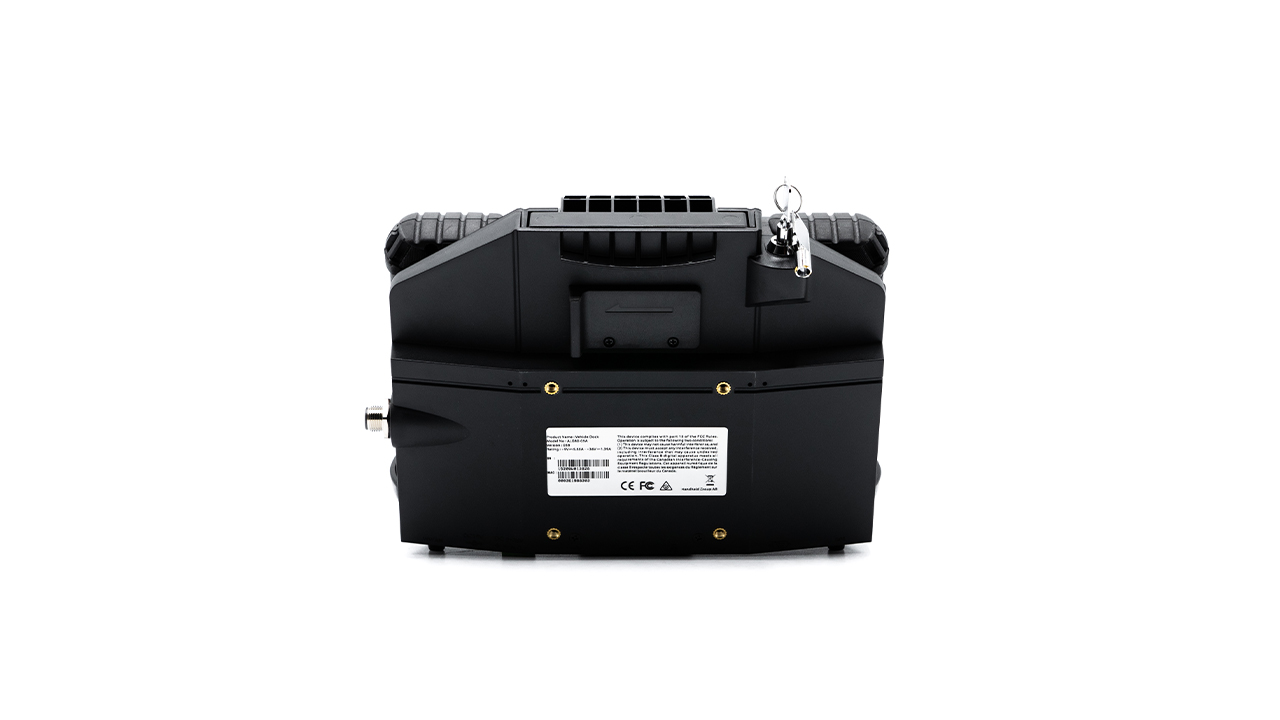

  • Key lockable dock
  • Wide power voltage input (9~36V DC-in)
  • IP65 design (with cover)
  • VESA standard
  • SMA connector (Female) for external GPS and WWAN antenna

Specification

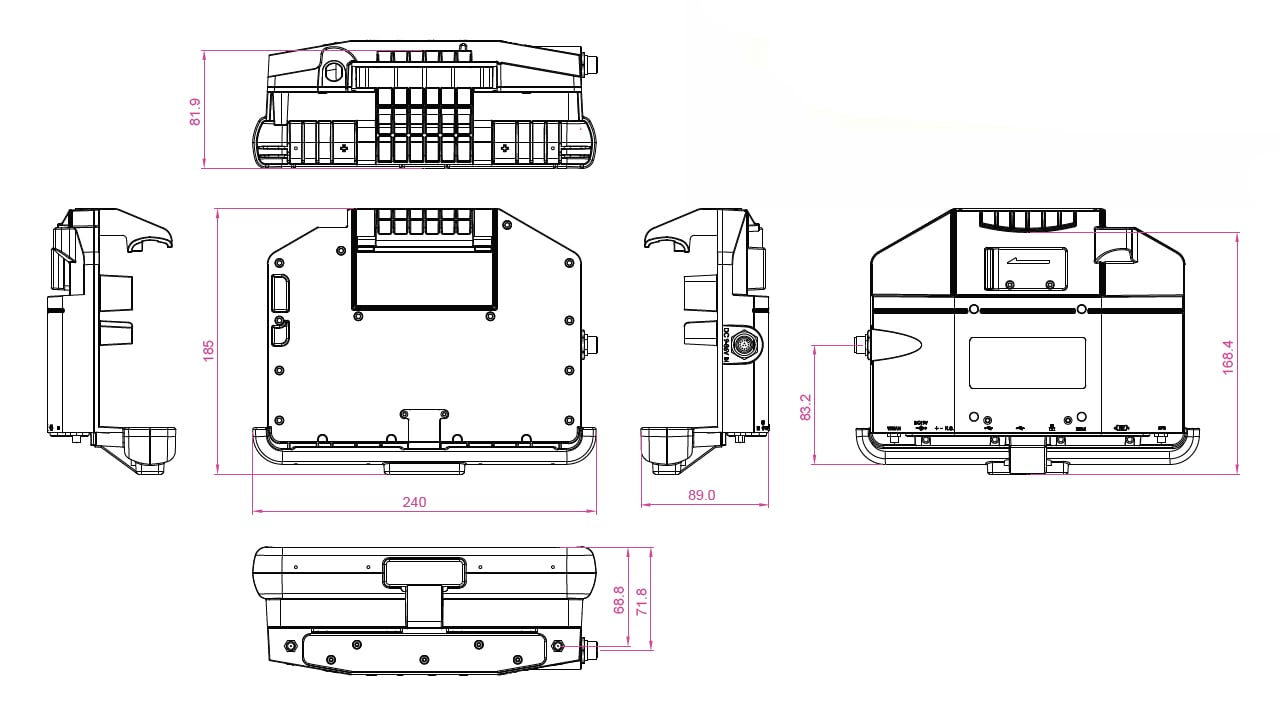

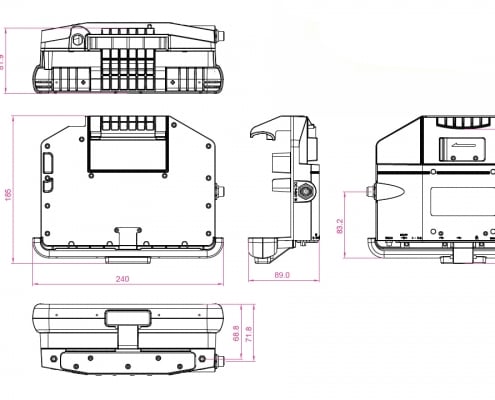

  • Dimensions: 240 x 185 x 89 mm
  • Power input: 9~36V DC In / 19V DC In / 9~36V DC In (M12 type)

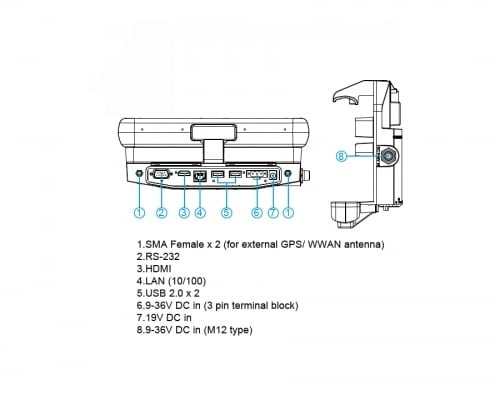

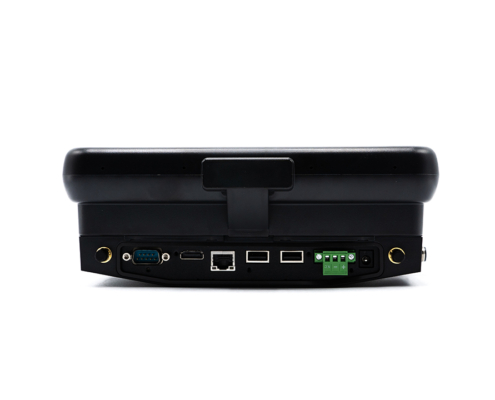

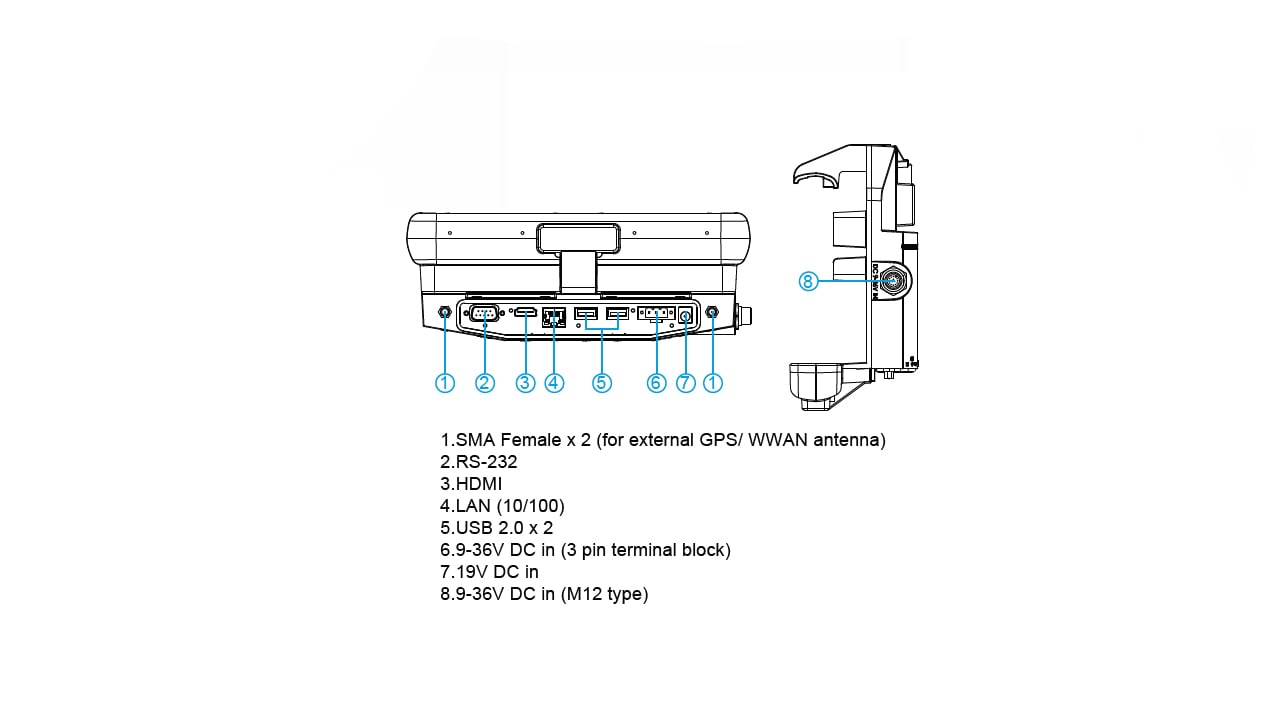

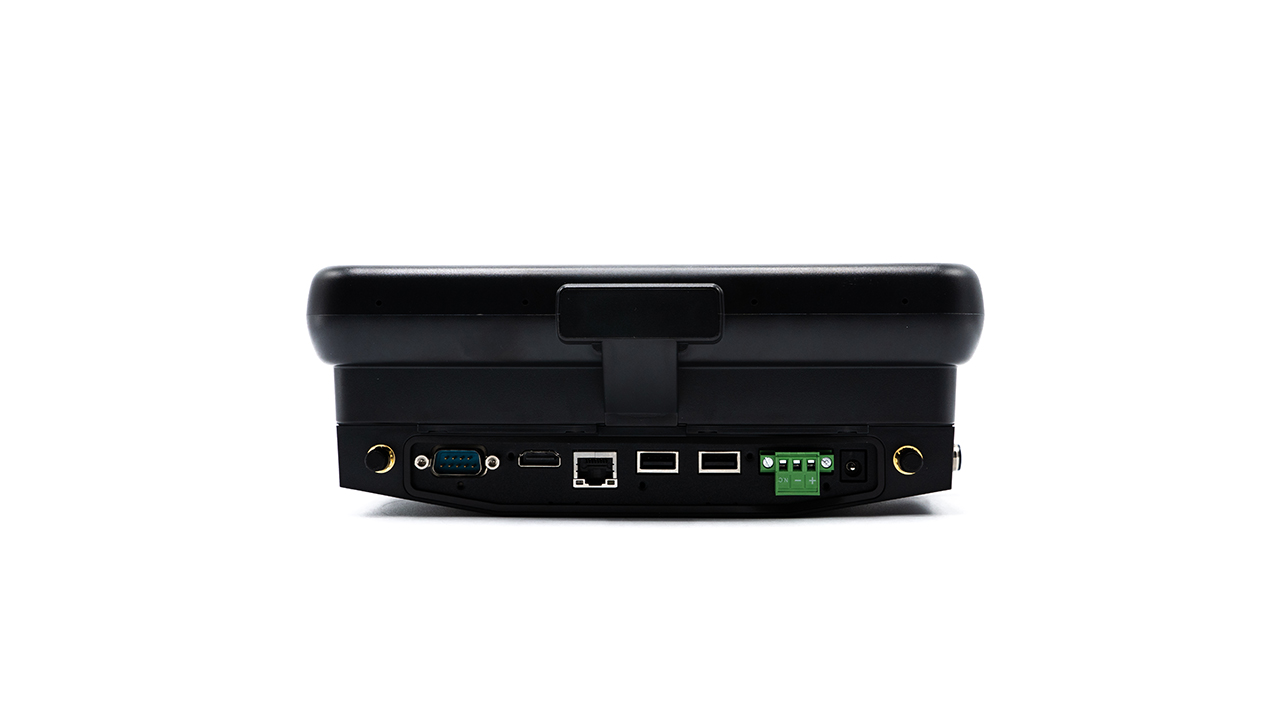

  • I/O Support: Bottom: RS-232 x 1, USB 2.0 x 2, LAN x 1, HDMI x 1, SMA Female x 2 (for external GPS and WWAN Antenna), 3-Pin Terminal Block x 1 (9-36V DC IN), Power Jack (19V DC IN)
    Side: DC 9~36 IN (M12 type)
  • Mounting: 75 x 75 mm VESA mount (M4 x 5 mm)
  • Vibration: MIL STD. 810G, 5 ~ 500Hz, 2.24G

Compatibility

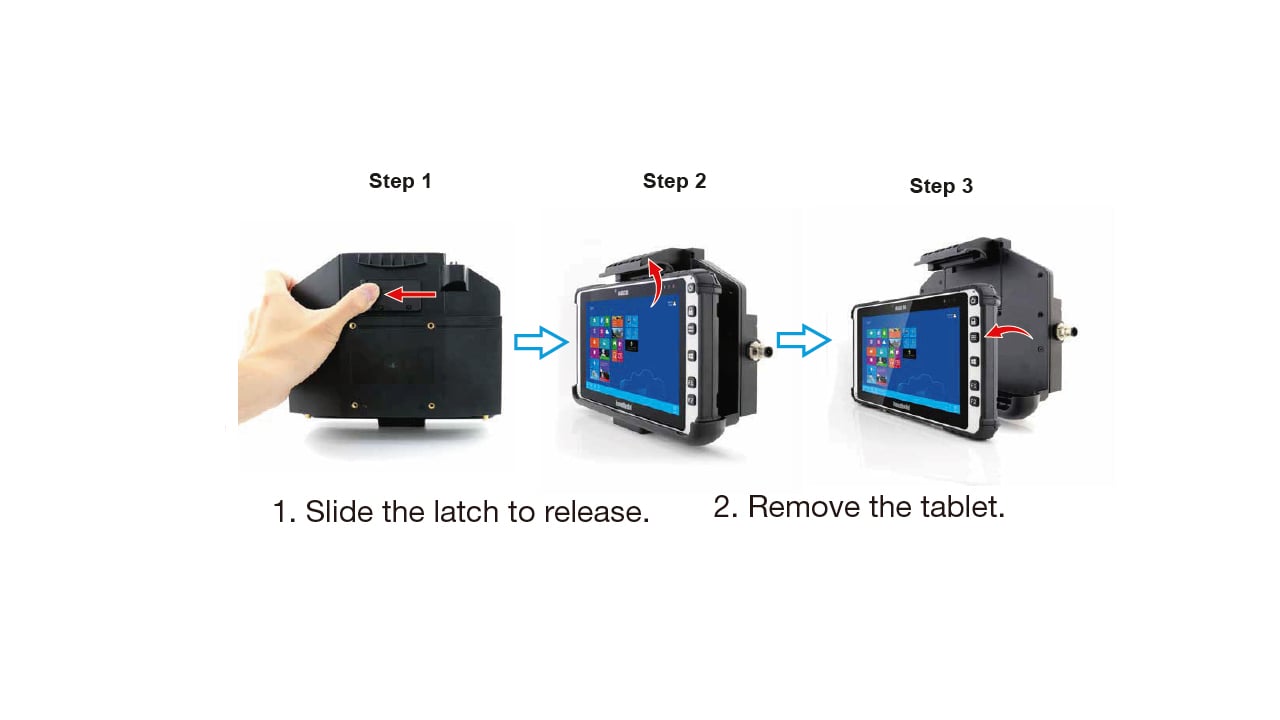

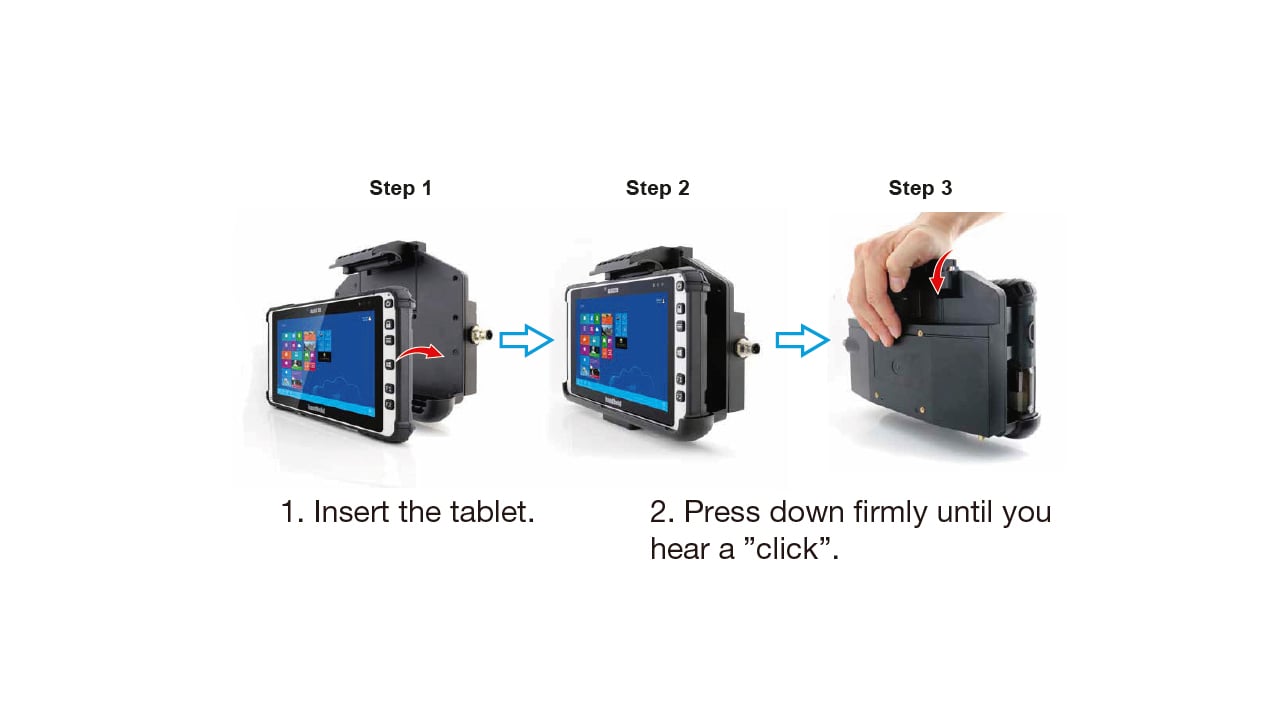

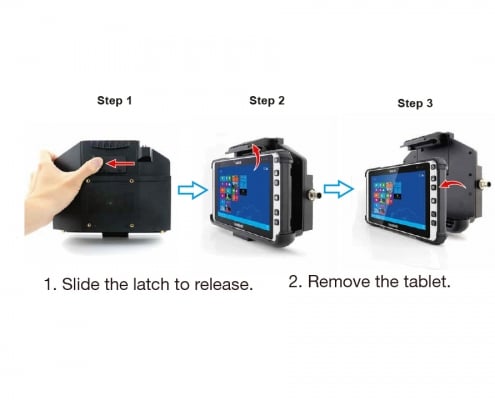

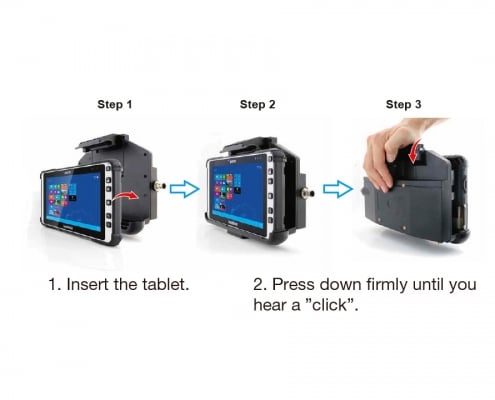

Quick start guide

Follow the instructions below.

Watch the video

Need Help?
Give us a Call now! And we will make sure that you get the right accessories.

ALGIZ 8X Lockable Vehicle Dock

P/N: ALG8X-05B

Overview

The Algiz 8X Lockable Vehicle Dock keeps the device steady in your vehicle and provides several connectivity options.

Features

  • Key lockable dock
  • Wide power voltage input (9~36V DC-in)
  • IP65 design (with cover)
  • VESA standard
  • SMA connector (Female) for external GPS and WWAN antenna

Specification

  • Dimensions: 240 x 185 x 89 mm
  • Power input: 9~36V DC In / 19V DC In / 9~36V DC In (M12 type)
  • I/O Support: Bottom: RS-232 x 1, USB 2.0 x 2, LAN x 1, HDMI x 1, SMA Female x 2 (for external GPS and WWAN Antenna), 3-Pin Terminal Block x 1 (9-36V DC IN), Power Jack (19V DC IN)
    Side: DC 9~36 IN (M12 type)
  • Mounting: 75 x 75 mm VESA mount (M4 x 5 mm)
  • Vibration: MIL STD. 810G, 5 ~ 500Hz, 2.24G

Compatibility

Quick start guide

Follow the instructions below.
