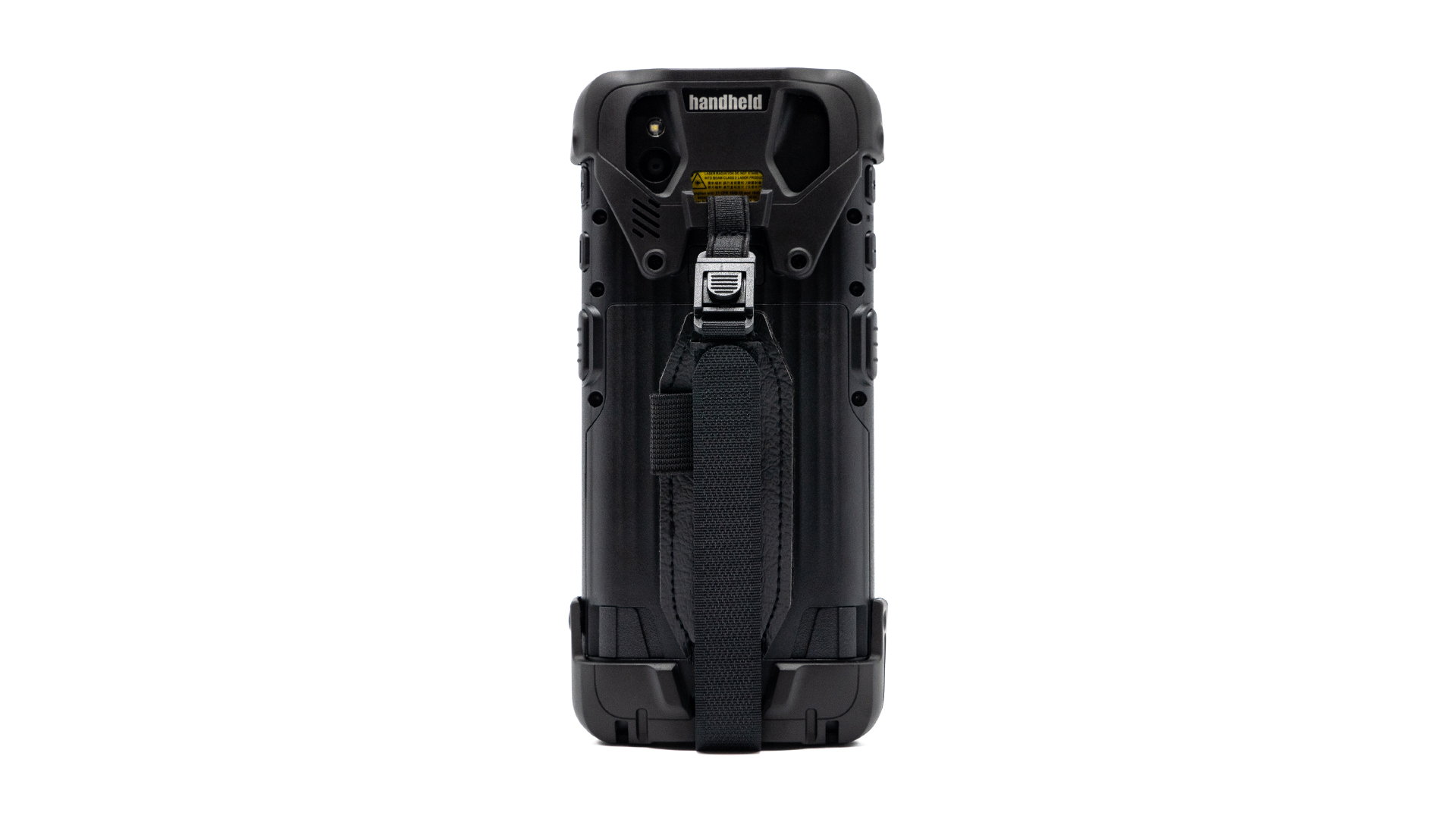

NAUTIZ X21
Spezifikationen
Dimensions
167 mm x 75.5 mm x 17 mm
170 mm x 80 mm x 24 mm (with bumpers)
Weight
295 g
Processor
Qualcomm Snapdragon™ 6490 Processor, 64bits,
Octa-Core up to 2.7 GHz
AI Engine, 6th generation
Graphics
Adreno 643 GPU
RAM and Storage
6 GB / 64 GB
Operating System
Android 14 (GMS)
Android Enterprise Recommended
Display
6.3” Color LCD
1080 X 2340 (FHD+) High Resolution Display
High sunlight visibility- LCD backlight up to 500nits.
Gorilla Glass with Multi-Touch Capacitive Touch Panel,
support stylus, glove, wet-finger Compatibility
Buttons
Side
Programmable key, Volume up/down
key, Left/right scan key, Power key
Battery
5100mAh Li-ion battery
Hot-swappable for up to 1 minute
Ports
USB 3.1 type C, supports fast charging, OTG, Display Port.
Ethernet via dongle or cradle
Nano SIM Slot x 2
Micro SD x 1, up to 1TB
Bottom pogo pins for charging in cradles
Rear pogo pins for expansions
Communication
Cellular (WWAN)
5G: n1/n2/n3/n5/n28/n41/n71/n77/n78/n79
(4×4 MIMO)
4G LTE(FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 12, 17, 20, 28
(TDD) – Bands 38, 39, 40, 41, 71
3G UMTS/HSPA+ – Bands 1, 2, 5, 8
2G GSM/GPRS/EDGE (850/900/1800/1900 MHz)
*Supports Dual Sim Dual 5G
*Supports 4G LTE Advanced , Up to CAT12 LTE downlink/uplink
Wireless LAN
Wi-Fi 6E+DBS, 2.4GHz & 5GHz & 6GHz
IEEE 802.11a/b/g/n, ac/ax, e/k/r/v/u PMKID (2×2 MU-MIMO)
Security WPA3, WPA2
PAN
BT 5.2, BLE 5, Class 1.5
NFC
13.56 MHz
ISO14443A/B, ISO15693, Mifare, Felica(ISO/IEC18092)
Audio
Speaker 1.5W. 100 dB at 10cm
Dual-Microphone support noise cancellation
Positioning
GPS, Galileo, GLONASS, Beidou, QZSS, SBAS
Supports L1+L5, a-GPS, XTRA
Cameras
Rear
16 megapixel with auto-focus and flash
Front
5 megapixel
Sensors
Gyroscope, G-sensor, E-compass, Light & Proximity Sensor
Data collection
Built-in 2D imager N6703SR/N6803FR (Optional)
Environment
Operating
-20°C to 55°C (-4°F to 131°F)
Charging: 0°C to 45°C (32°F to 113°F)
Storage
-40°C to 70°C (-40°F to 158°F), without battery
Drop / Shock
MIL-STD-810H:2019 Method 516.8/Procedure IV, 1.2m (4ft)
Drop tested from 1.8m/1.5m with bumpers
Vibration
MIL-STD-810H:2019, Method 514.8, Procedure I
Tumble tested 300 cycles (0.5m/1.6 ft.)
Sand / Dust
IP65 & IP68 per IEC 60529
Water
IP65 & IP68 per IEC 60529
Humidity
MIL-STD-810H:2019, Method 507.6, Procedure II – Aggravated Cycle
95%RH
