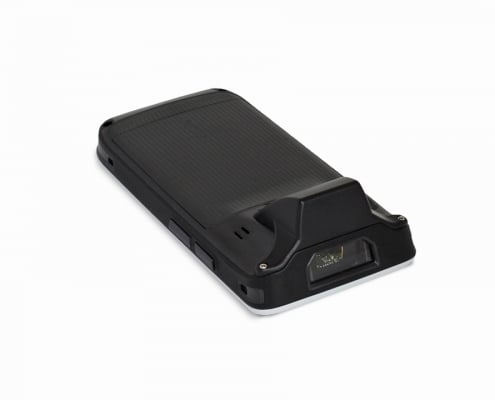

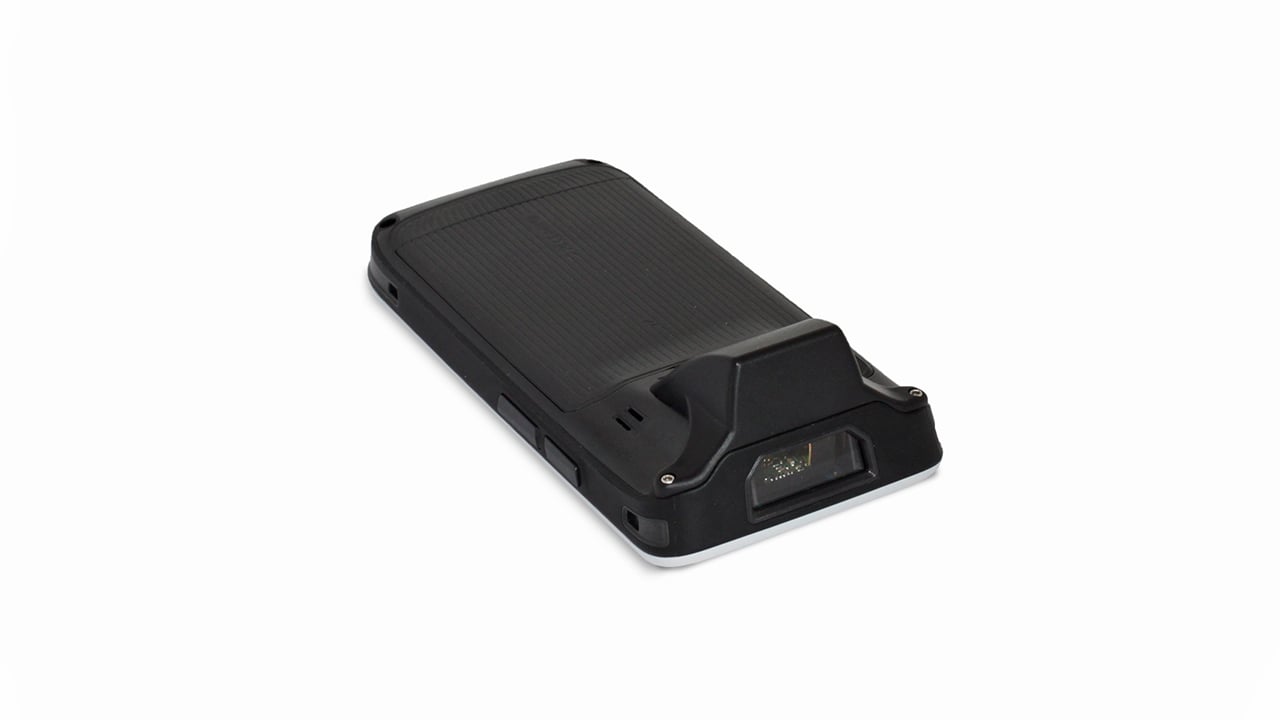

NAUTIZ X2 LF RFID Reader

P/N: NX2-1030

Overview

The LF RFID solution for our Nautiz X2 adds the ability to read a wide variety of transponder tags in the 125/134.2kHz spectra.

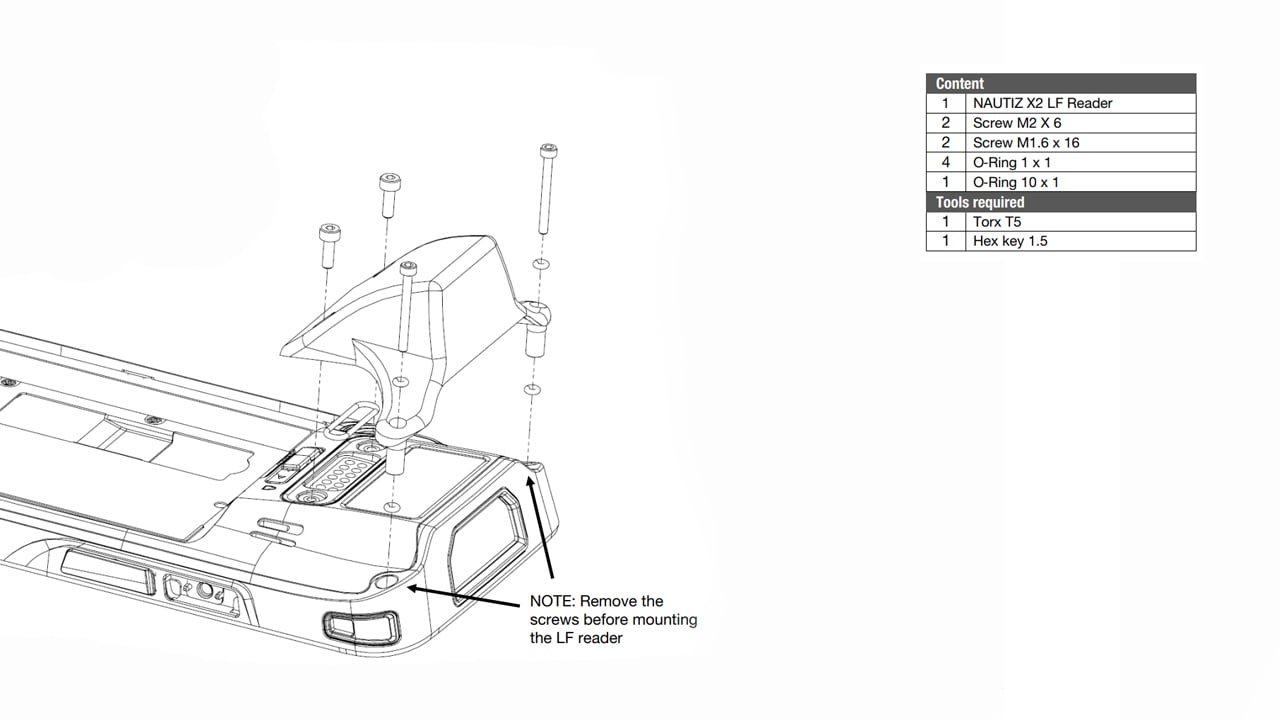

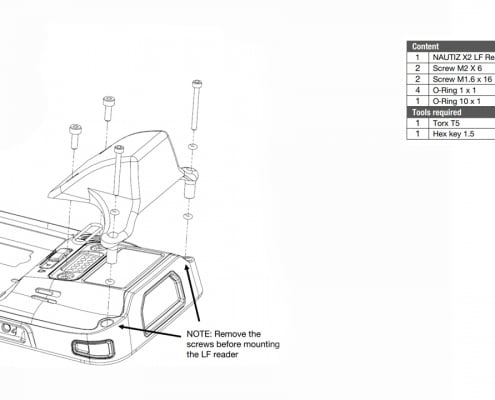

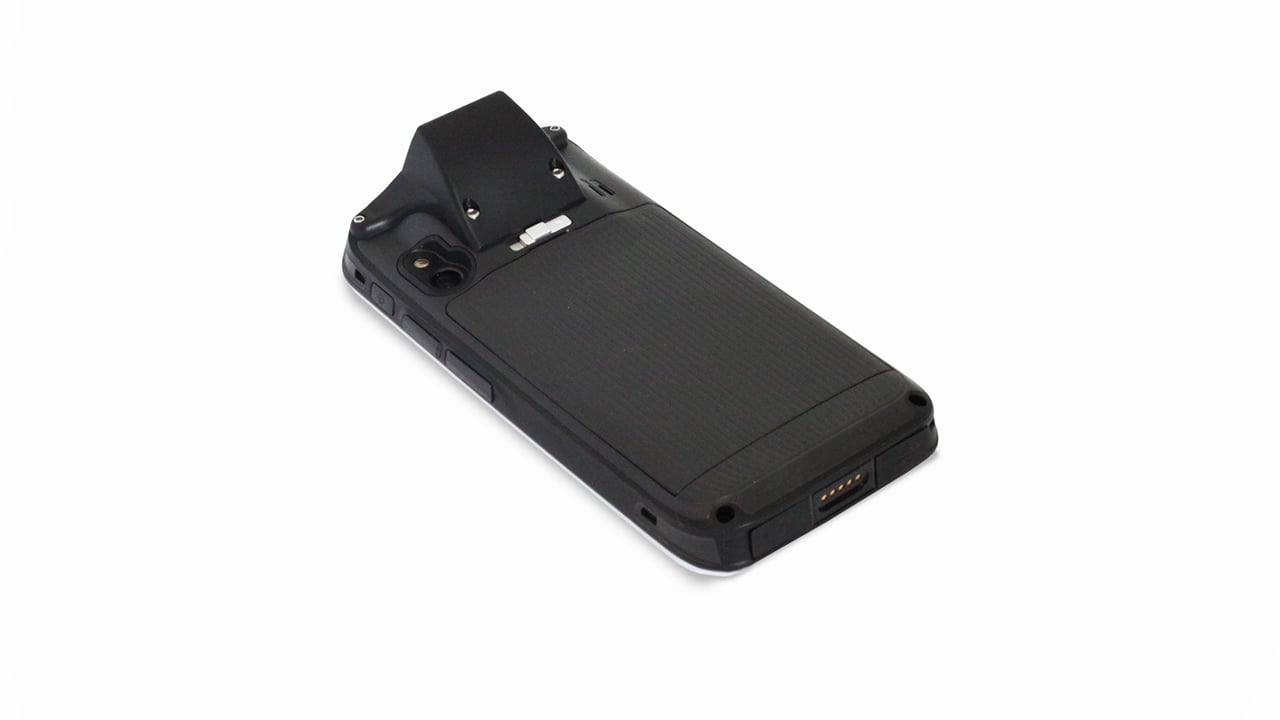

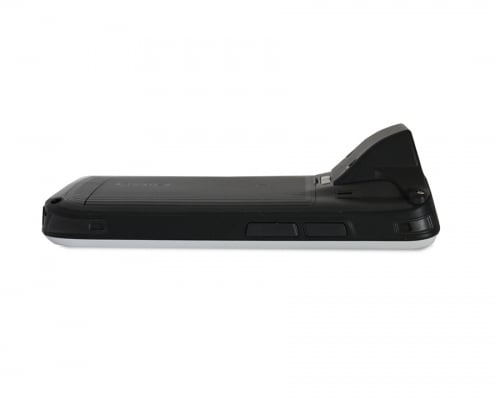

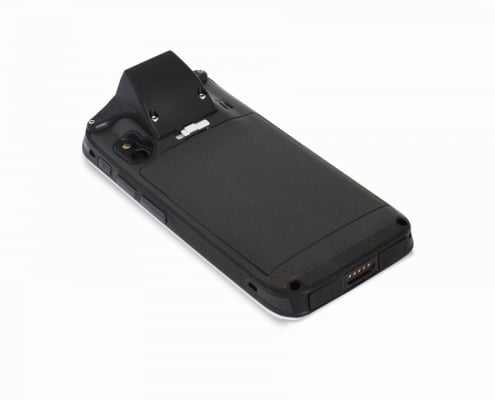

The reader is designed with ergonomics in mind and built to fit on top of the back connector still allowing full access to the camera and battery. Suitable for waste management.

Features

  • Wide variety of transponder support
  • Wide range of operating temperatures
  • EU, US, UK and AU plugs

Compatibility

Need Help?
Give us a Call now! And we will make sure that you get the right accessories.

Technical Specifications

Dimensions

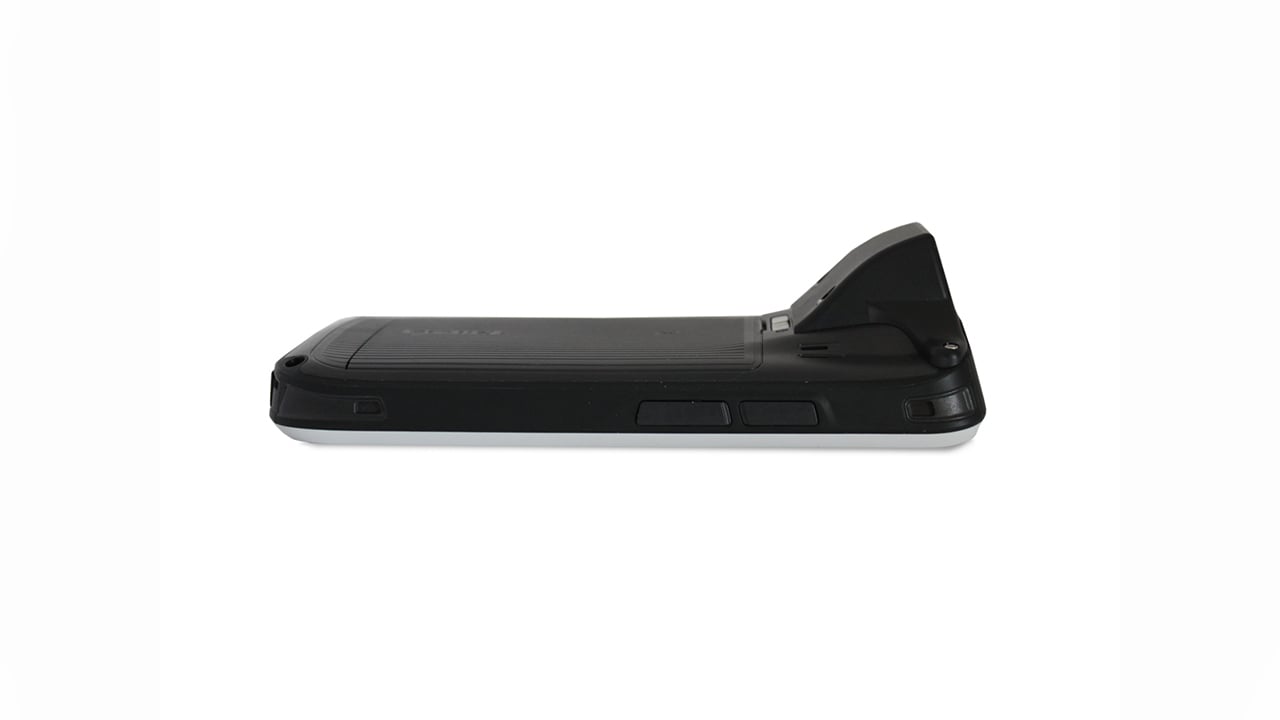

35 mm x 66 mm x 40 mm (Adds 18 mm (thickness) to the rear of the unit.)

Weight

10g

Radio frequency

125 / 134.2kHz (LF)

Housing

Material ABS UL94-V0, black

Power supply

3.3V

Current Consumption

65mA (max.)

Host Interface

Serial (logic level 3.3V) on “/dev/ttyMT3”

Transmission Speed

9600 baud (default)
115200 baud (max.)

Transmission Speed

9600 baud (default)
115200 baud (max.)

Relative Humidity

5% to 95% non-condensing

Supported Transponders

125kHz / 134.2kHz: 4100, 4102, 4200 (only emulation of 4100,4102), 4050, 4150, 4450, 4550, AWID, CASI-RUSCO, Deister, HITAG 1 / 2 / S (without encryption mode), Keri, Miro, Pyramid, TIRIS/HDX, UNIQUE, FDX-B, Q5, TITAN, T55x7

Environment

Operating
-25°C to +80°C (-13°F to +176°F)
Storage
-45°C to +85°C (-49°F to +185°F)
